FAQ

What causes premature slewing bearing failure?

The most prevalent root causes include inadequate lubrication (incorrect grease grade, missed regreasing cycles, insufficient lubricant volume), contaminant penetration through damaged seals, improper installation (uneven bolt torque, irregular mounting surfaces leading to race deformation), and operation beyond the bearing’s rated load limits. Raceway fatigue spalling after reaching the full design lifespan counts as normal end-of-life wear and is not classified as premature failure.

Key Takeaways：

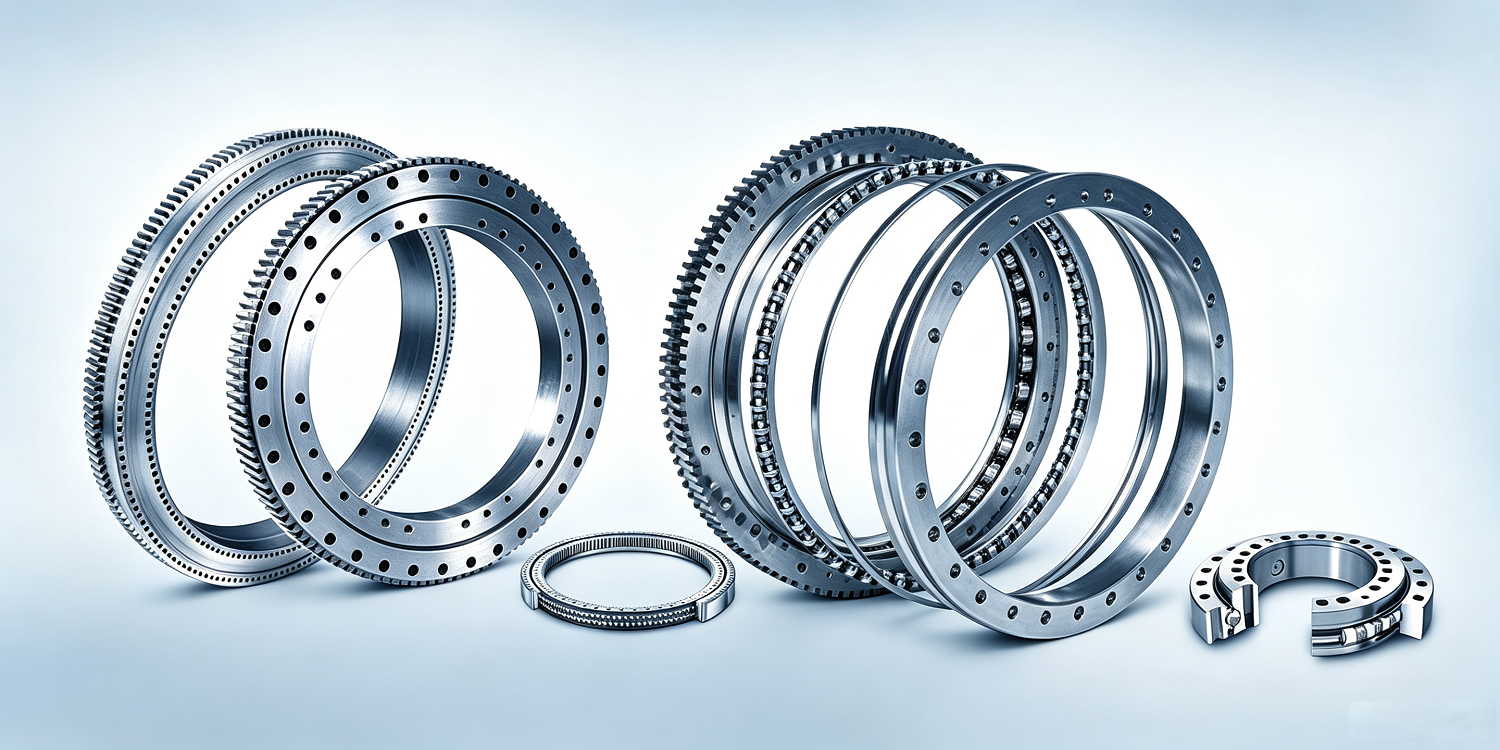

Slewing bearings are irreplaceable large-diameter composite rotary components that enable 360° rotation for heavy machinery including cranes and wind turbines.

Driven by robust demand from construction, renewable energy and automation sectors, the global slewing bearing market maintains steady growth; wind power accounts for nearly half of total market consumption.

Featuring an integrated structure of races, rolling elements, seals and optional gear teeth, slewing bearings simultaneously bear axial, radial and overturning moment loads within a compact footprint.

Five mainstream structural variants (four-point ball, double-row eight-point ball, cross roller, three-row roller, combined ball-roller) are purpose-built for distinct load profiles and precision requirements.

Diverse cross-industry applications impose varying performance constraints covering load capacity, rotational speed, temperature range, corrosion resistance and positioning precision.

Accurate bearing selection relies on systematic load calculation, model matching, spatial constraint assessment, speed verification, environmental evaluation and optimized drive system design.

Most premature bearing failures stem from poor lubrication, seal damage or flawed installation; regular regreasing and periodic clearance/torque inspection constitute the most vital maintenance measures.

Slewing bearing, slewing ring and turntable bearing refer to identical components; slewing drives represent an independent integrated rotary solution separate from standalone geared slewing bearings.
